POWERED SCAFFOLDING > SWING STAGE > Hoist

Pocket Climber

Astro Hoists

Lightweight, breech-loading hoist for easy maintenance and inspection. 220VAC and dual voltage models available.

Pneumatic hoist for heavy industrial applications.  220VAC and 208/240VAC dual voltage models available.

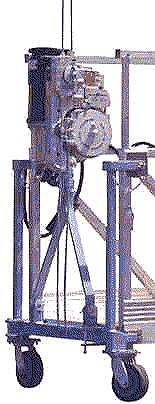

POWERCLIMBER POCKET CLIMBER


  • Compact Design Fits Through 14-Inch Opening
  • Lightweight
  • High-Speed
  • Breech-Loading
  • Self-Reeving
  • Two Built-In Wire Rope Brakes
  • Automatic Electromagnetic Primary Brake
  • Controlled Decent Lever
  • Thermal Protected Motor
  • Low Maintenance


Model Motor
(hp/psi)		 Capacity
(lbs)		 Draw
(amp/cfm)		 Speed
(ft/min)		 Dimensions
(H" X W" D")		 Weight
(lbs)
PC1-750EDV 110/220VAC, 60 hz, 1 phase, 0.75 hp 750 6 / 12 35 20" X 13" X 13.5" 100
PC1-1000E 220VAC, 60 hz, 1 phase, 1.0 hp 1000 7 35 20" X 12" X 13" 104
PC1-1000EC 110 or 220VAC, 60 hz, 1 phase, 1.0 hp 1000 7 / 14 35 21" X 13" X 13.5" 104
PC1-1000EDV 110/220VAC, 60 hz, 1 phase, 1.0 hp 1000 7 / 14 35 21" X 13" X 13.5" 106
PC1-1000E3 208/240VAC, 60 hz, 3 phase, 1.0 hp 1000 6 35 20" X 12" X 13" 102
PC1-1000A Air, 8 vane, 90-120 psi, 4 hp 750/1000 40-70 cfm 35 18" X 12" X 14" 88

*Includes two built-in wire rope brakes: an over-speed brake on the suspension rope and a slack rope brake for the optional second wire rope.


Top

































POWERCLIMBER ASTRO


  • High-Capacity
  • High-Speed
  • Self-Reeving
  • Multiple Wire Rope Sizes Accepted
  • Modular Construction
  • Compact Design Fits Through 18-Inch Opening
  • Lightweight
  • Two Built-In Wire Rope Brakes
  • Controlled Decent Lever
  • Thermal Protected Motor
  • Low Maintenance


Model Motor
(hp/psi)		 Capacity
(lbs)		 Draw
(amp/cfm)		 Speed
(ft/min)		 Dimensions
(H" X W" D")		 Weight
(lbs)
E1000 220VAC, 60 hz, 1 phase, 1.2 hp 1000 6-8 35 23" X 17" X 12.5" 123
E1500 220VAC, 60 hz, 1 phase, 1.5 hp 1500 7-9 35 23" X 18" X 12.5" 125
3E1500 208/240VAC, 60 hz, 3 phase, 1.35 hp 1500 7 35 23" X 17" X 12.5" 123
3E2000 208/240VAC, 60 hz, 3 phase, 2.5 hp 2000 10.5 35 23" X 20.5" X 12.5" 130
A1000 Air, 8 vane, 100 psi, 4 hp 1000 40-60 cfm 35 23" X 15.5" X 12.5" 105
A2000 Air, 8 vane, 120 psi, 4 hp 2000 40-60 cfm 35 23" X 15.5" X 12.5" 105

*Includes two built-in wire rope brakes.
