SHORING > Heavy Duty 100 Kip System


			Back to Shoring

100 Kip/Leg Shoring For extra heavy duty construction. Please call for availablility.

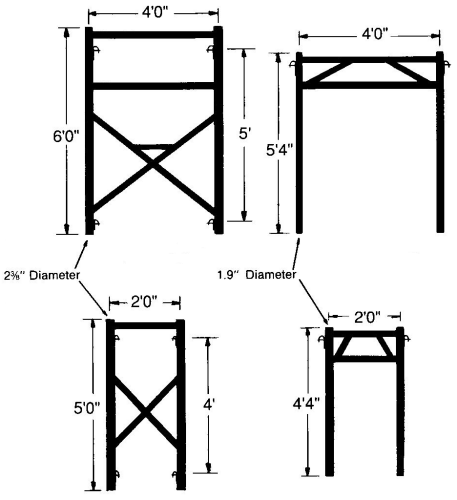

SHORE "X" 11 KIP/LEG SHORING FRAMES

Part #

Description

Measurement

Weight

Std Pkg.

XXXX

4' x 6' BASE

4' W X 6' H

66 lb

25/Bundle

XXXX

4' x 5' EXTENSION

4' W X 5'-4" H

54 lb

25/Bundle

XXXX

2' x 5' BASE

2' W X 5' H

46 lb

25/Bundle

XXXX

2' x 4'-4" EXTENSION

2' W X 4'-4" H

38 lb

25/Bundle

XXXX

4' x 5' BASE

4' W X 5' H

58 lb

--

SHORE-X ALLOWABLE WORKING LOADS (LBS./LEG)
ADJUSTMENT: EXTENSION: 1 TIER - 10 TIERS:	UP TO 32" NONE OR 1'-0" TO 5'-0" 11,000 LBS./LEG

For tower over 60'-0" high, consult with the engineering department. NOTE: 1) Extensions 1'-0" to 2'-0" require side cross braces only. 3'-0" to 5'-0" require side cross braces and cross braces across the face of the frame. 2) The above allowable leg loads reflect a 2.5:1 safety factor. 3) Reduce allowable leg loads to 90% of above values when 2125 or 2155 cross braces are used. 4) Reduce allowable leg loads to 70% of above values when using 02xx-12, 13, or 15 cross braces. 5) Reduce allowable leg loads to 90% of above values when using 0215-07 straddle brace in one level of a tower. 6) When using swivel screw jacks in a tower, consult engineering department for allowable loading.

Top of Frames | Top of Page

BASE PLATES AND ADJUSTING SCREWS



Base Plate		Swivel Type Plate w/16" Adjusting Screw	21" Adjusting Screw w/4-1/2" X 14" J Head


		Jack Cap

Part #

Description

Measurement

Weight

Std Pkg.

BPFH

BASE PLATE

--

8 lb

EACH

XXXX

SWIVEL TYPE PLATE W/16"ADJUSTING SCREW

--

19 lb

EACH

XXXX

21" ADJUSTING SCREW W/4-1/2" x 14" J HEAD

--

26 lb

EACH

JCAP

JACK CAP

--

1/8 lb

EACH

Top of Bases | Top of Page

ACCESSORIES



Adapter Pin	Gravity Lock Pin	Timber Bracing Clamp


Spacer Bar 15" (3/16")	Spacer 8-1/2" (3/16")	Coupling Insert Pin

IMAGE NOT AVAILABLE
Beam Clamp	5" X 8" U Shoring Head

Part #

Description

Measurement

Weight

Std Pkg.

PA

ADAPTER PIN

--

1 lb

EACH

XXXX

GRAVITY LOCK PIN

--

25 lb

100/CARTON

CTB

TIMBER BRACING CLAMP

--

2.5 lb

EACH

XXXX

SPACER BAR 15" (3/16")

--

1 lb

EACH

0240085

SPACER BAR 8-1/2" (3/16")

--

1 lb

EACH

XXXX

COUPLING INSERT PIN

--

2 lb

EACH

XXXX

BEAM CLAMP

--

2.5 lb

EACH

XXXX

5" X 8" U SHORING HEAD

--

8 lb

EACH

Top of Accessories | Top of Page

TUBULAR CROSS BRACES (SINGLE HOLE)

Part #

Measurement
(Length X Height)

Measurement
(Diagonal)

Weight

Std Pkg.

XXXX

4' X 4'

69 7/8"

9 lb

100/BUNDLE

XXXX

6' X 4'

88 1/2"

11 lb

100/BUNDLE

XXXX

8' X 4'

109 5/16"

13 lb

100/BUNDLE

XXXX

10' X 4'

131 1/4"

16 lb

100/BUNDLE

XXXX

4' X 5'

78 13/16"

10 lb

100/BUNDLE

XXXX

6' X 5'

95 11/16"

12.5 lb

100/BUNDLE

XXXX

8' X 5'

115 3/4"

15.5 lb

100/BUNDLE

XXXX

10' X 5'

136 1/8"

18 lb

100/BUNDLE

Top of Cross Braces | Top of Page

E-mail or call us at (808) 839-1357 to discuss your job requirements!
