SHORING > Shore "X" 11 Kip System


			Back to Shoring

Steel Shore "X" 11 Kip/Leg Frames		Base Plates & Adjusting Screws


Steel Shore "X" 11 Kip/Leg Accessories		Tubular Cross Braces (Double Hole)

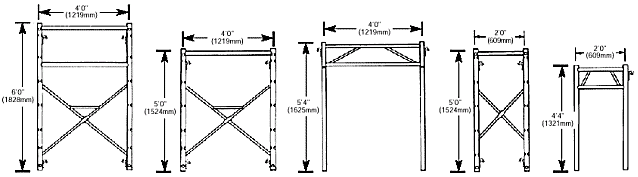

SHORE "X" 11 KIP/LEG SHORING FRAMES

Part #

Description

Measurement

Weight

Std Pkg.

FB46X

4' x 6' BASE

4' W X 6' H

66 lb

25/Bundle

FB45X

4' x 5' BASE

4' W X 5' H

58 lb

25/Bundle

FX454

4' x 5' EXTENSION

4' W X 5'-4" H

54 lb

25/Bundle

FB25

2' x 5' BASE

2' W X 5' H

46 lb

25/Bundle

FX244

2' x 4'-4" EXTENSION

2' W X 4'-4" H

38 lb

25/Bundle

SHORE-X ALLOWABLE WORKING LOADS (LBS./LEG)
ADJUSTMENT: EXTENSION: 1 TIER - 10 TIERS:	UP TO 32" NONE OR 1'-0" TO 5'-0" 11,000 LBS./LEG

For tower over 60'-0" high, consult with the engineering department. NOTE: 1) Extensions 1'-0" to 2'-0" require side cross braces only. 3'-0" to 5'-0" require side cross braces and cross braces across the face of the frame. 2) The above allowable leg loads reflect a 2.5:1 safety factor. 3) Reduce allowable leg loads to 90% of above values when 2125 or 2155 cross braces are used. 4) Frame base legs have a 2-3/8" diameter. 5) Frame extension legs have a 1.9" diameter. 6) When using swivel screw jacks in a tower, consult engineering department for allowable loading.

Top of Frames | Top of Page

BASE PLATES AND SCREWJACKS



Base Plate		Heavy Duty Screwjack w/Base Plate - 16"	Heavy Duty Screw Jack w/4-1/2" X 14" J Head


		Jack Cap - Cast Steel

Measurement

Part #

Description

Min

Max

Weight

Std Pkg.

BPFH

BASE PLATE

5/16"

5/16"

8 lb

EACH

JBPH

HEAVY DUTY SCREW JACK
W/BASE PLATE - 16"

4"

16"

19 lb

BBL

JUHH

HEAVY DUTY SCREW JACK
W/4-1/2" x 14" J HEAD

4"

21"

23 lb

BBL

JCAP

JACK CAP - CAST STEEL

--

--

.5 lb

EACH

Top

ACCESSORIES



Adapter Pin	Gravity Lock Pin	Timber Bracing Clamp


Spacer Bar (3/16") 15" & 8-1/2"	Coupling Insert Pin	Speedlock Assembly

Part #

Description

Measurement

Weight

Std Pkg.

PA

ADAPTER PIN

--

1 lb

EACH

PPH

GRAVITY LOCK PIN

--

25 lb

100/CARTON

CTB

TIMBER BRACING CLAMP

--

2.5 lb

EACH

BARSP15

SPACER BAR 15" (3/16")

--

1 lb

EACH

0240085

SPACER BAR 8-1/2" (3/16")

--

1 lb

EACH

PCHW

COUPLING INSERT PIN

--

2 lb

EACH

XXXX

SPEEDLOCK ASSEMBLY

--

.5 lb

EACH

Top

TUBULAR CROSS BRACES (DOUBLE HOLE)

Part #

Measurement
(Length X Height)

Measurement
(Diagonal)

Weight

Std Pkg.

BC0445

4' X 4'/5'

69 7/8"

8 lb

25/50/100/BUNDLE

BC0545

5' X 4'/5'

--

9 lb

25/50/100/BUNDLE

BC0645

6' X 4'/5'

88 1/2"

11 lb

25/50/100/BUNDLE

BC0745

7' X 5'/5'

--

12 lb

25/50/100/BUNDLE

BC0845

8' X 4'/5'

109 5/16"

14 lb

25/50/100/BUNDLE

BC1045

10' X 4'/5'

131 1/4"

16 lb

25/50/100/BUNDLE

Brace Measurements are from outside hole to hole, on-center.
