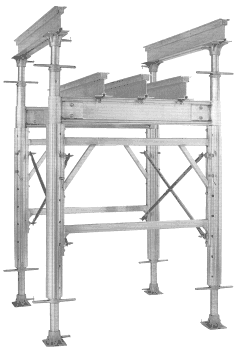

ATLAS SALES COMPANY - Aluminum Shoring Frame System

Back to Shoring Frames


12 Kip/Leg Aluminum Shoring Frames	Adjusting Screws and Extension Tubes


Aluminum Shoring Accessories	Tubular Cross Braces (Single Hole)

Click here for parts illustration view.

12 KIP/LEG ALUMINUM SHORING FRAMES

Frames are made of high strength aluminum alloy. Their light weight/high strength ratio greatly facilitates handling and erecting. Available in 4', 5', and 6' heights.

Part #

Description

Measurement

Weight

0500200

4' ALUMINUM SHORING FRAME

4' W X 3' 11-1/2" H

19.4 lb

0500300

5' ALUMINUM SHORING FRAME

4' W X 4' 11-1/2" H

25.5 lb

0500400

6' ALUMINUM SHORING FRAME

4' W X 5' 11-1/2" H

29.4 lb

Top

ADJUSTING SCREWS AND EXTENSION TUBES



SHL Screw Jack - 24" -DYWIDAG (30" also available)		SHL Swivel Screw Jack 23"
Adjustable Screw Jacks are supplied with base plate and 't' bolts attached. This helps to reduce the number of pieces shipped to job sites.

			IMAGE NOT AVAILABLE
Red Stabilizer	Blue Stabilizer		Base Plate (Universal)


Extension Tube 30" and 48"	Extension Tube Plate		Extension Tube Support U-Pin

Part #

Description

Measurement

Capacity

Weight

0502200

SHL SCREW JACK 24" -DYWIDAG

7" W X 4" (Max 15") H

-- lb

14.2 lb

0502300

SHL SCREW JACK 30" -DYWIDAG

7" W X 4" (Max 21") H

-- lb

14.2 lb

CALL

SHL SWIVEL SCREW JACK 23"

7" W X 4" (Max 16") H

-- lb

14.5 lb

0502500

RED STABILIZER

-- lb

.1 lb

0502600

BLUE STABILIZER

-- lb

.1 lb

0502900

BASE PLATE (UNIVERSAL)

-- lb

0501400

SHL ALUMINUM EXTENSION TUBE 30"

30" L

-- lb

2.9 lb

0501500

SHL ALUMINUM EXTENSION TUBE 48"

48" L

-- lb

4.8 lb

0500800

SHL EXTENSION TUBE BASE PLATE

-- lb

4.25 lb

0501800

SHL EXTENSION TUBE SUPPORT PIN

-- lb

.8 lb

Top

ALUMINUM SHORING FRAME ACCESSORIES


		IMAGE NOT AVAILABLE
SHL Coupling Pin	Retaining Clamps	Jet Lock


Beam Clip w/T-Bolt	Saddle Beam

Part #

Description

Measurement

Capacity

Weight

0504600

SHL COUPLING PIN

-- lb

1.98 lb

XXXX

RETAINING CLAMP

-- lb

XXXX

JET LOCK

-- lb

1 lb

0504800

BEAM CLIP W/T-BOLT

-- lb

.3 lb

0503600

SHL SADDLE BEAM 6-1/2" X 4'

6-1/2" W X 4' L

-- lb

17.6 lb

0503601

SHL SADDLE BEAM 7-1/2" X 4'

7-1/2" W X 4' L

-- lb

0503760

SHL SADDLE BEAM 6-1/2" X 6'

6-1/2" W X 6' L

-- lb

24.8 lb

0503761

SHL SADDLE BEAM 7-1/2"X 6'

7-1/2" W X 6' L

-- lb

Top

TUBULAR CROSS BRACES (SINGLE HOLE)

Cross braces are made of galvanized hi-tensile steel tubes. They are available in various sizes as shown in the table below. A special hinge is designed for rugged and extended service. The cross braces are color coded for easy identification.

Part #

Measurement
(Length X Height)

Measurement
(Diagonal)

Weight

Color

XXXX

4' X 2'

53 41/64"

6.0 lb

Orange

XXXX

5' X 2'

64 19/32"

7.1 lb

White

XXXX

6' X 2'

75 7/8"

8.5 lb

Black

XXXX

7' X 2'

87 11/32"

9.5 lb

Blue

XXXX

8' X 2'

98 15/16"

11 lb

Green

XXXX

10' X 2'

122 23/64"

12.8 lb

Yellow

XXXX

4' X 4'

67 27/32"

7.5 lb

Yellow

XXXX

5' X 4'

76 51/64"

8.5 lb

Silver

XXXX

6' X 4'

86 1/2"

9.5 lb

Red

XXXX

7' X 4'

96 23/32"

10.6 lb

Grey

XXXX

8' X 4'

107 19/64"

11.8 lb

Orange

XXXX

10' X 4'

129 7/32"

14.1 lb

Grey
