ATLAS SALES COMPANY

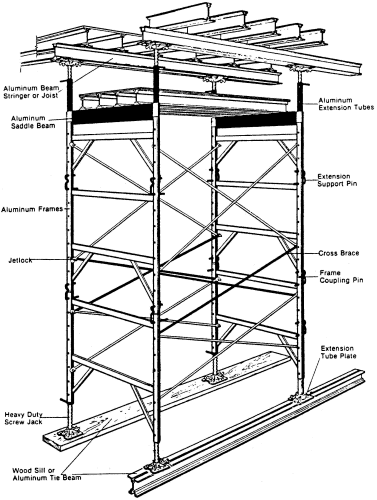

12 KIP/LEG ALUMINUM SHORING FRAMES

Frames are made of high strength aluminum alloy. Their light weight/high strength ratio greatly facilitates handling and erecting. Available in 4', 5', and 6' heights.

Part #

Description

Measurement

Weight

XXXX

4' ALUMINUM SHORING FRAME

4' W X 3' 11-1/2" H

19.4 lb

XXXX

5' ALUMINUM SHORING FRAME

4' W X 4' 11-1/2" H

25.5 lb

XXXX

6' ALUMINUM SHORING FRAME

4' W X 5' 11-1/2" H

29.4 lb

Top of Frames | Top of Page

BASE PLATES AND ADJUSTING SCREWS



Adjustable Screw Jack - Standard			Adjustable Screw Jack - Swivel

Adjustable Screw Jacks are supplied with base plate and 't' bolts attached. This helps to reduce the number of pieces shipped to job sites.

Part #

Description

Minimum

Maximum

Weight

XXXX

ADJUSTABLE SCREW JACK - STANDARD

7" W X 11" H

7" W X 22.5" H

14.2 lb

XXXX

ADJUSTABLE SCREW JACK - SWIVEL

7" W X 11.5" H

7" W X 23.5" H

14.5 lb

Top of Bases | Top of Page

ACCESSORIES



Adapter Pin	Gravity Lock Pin	Timber Bracing Clamp


Spacer Bar 15" (3/16")	Spacer 8-1/2" (3/16")	Coupling Insert Pin

IMAGE NOT AVAILABLE
Beam Clamp	5" X 8" U Shoring Head

Part #

Description

Measurement

Weight

Std Pkg.

ADAPTER PIN

1 lb

EACH

XXXX

GRAVITY LOCK PIN

25 lb

100/CARTON

CTB

TIMBER BRACING CLAMP

2.5 lb

EACH

XXXX

SPACER BAR 15" (3/16")

1 lb

EACH

0240085

SPACER BAR 8-1/2" (3/16")

1 lb

EACH

XXXX

COUPLING INSERT PIN

2 lb

EACH

XXXX

BEAM CLAMP

2.5 lb

EACH

XXXX

5" X 8" U SHORING HEAD

8 lb

EACH

Top of Accessories | Top of Page

TUBULAR CROSS BRACES (SINGLE HOLE)

Cross braces are made of galvanized hi-tensile steel tubes. They are available in various sizes as shown in the table below. A special hinge is designed for rugged and extended service. The cross braces are color coded for easy identification.

Part #

Measurement
(Length X Height)

Measurement
(Diagonal)

Weight

Color

XXXX

4' X 2'

53 41/64"

6.0 lb

Orange

XXXX

5' X 2'

64 19/32"

7.1 lb

White

XXXX

6' X 2'

75 7/8"

8.5 lb

Black

XXXX

7' X 2'

87 11/32"

9.5 lb

Blue

XXXX

8' X 2'

98 15/16"

11 lb

Green

XXXX

10' X 2'

122 23/64"

12.8 lb

Yellow

XXXX

4' X 4'

67 27/32"

7.5 lb

Yellow

XXXX

5' X 4'

76 51/64"

8.5 lb

Silver

XXXX

6' X 4'

86 1/2"

9.5 lb

Red

XXXX

7' X 4'

96 23/32"

10.6 lb

Grey

XXXX

8' X 4'

107 19/64"

11.8 lb

Orange

XXXX

10' X 4'

129 7/32"

14.1 lb

Grey

Top of Cross Braces | Top of Page

E-mail or call us at (808) 839-1357 to discuss your job requirements!
