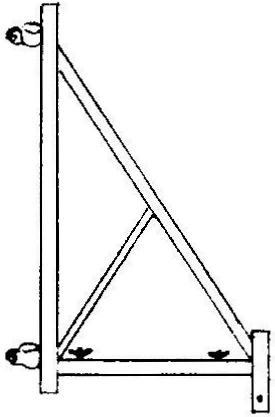

Horizontal Braces	Increase your vertical and horizontal reach within OSHA safety guidelines with Atlas Outriggers & Overhang Brackets!	Create a safe working deck with Atlas Guardrails, Posts, Frames and Gates!

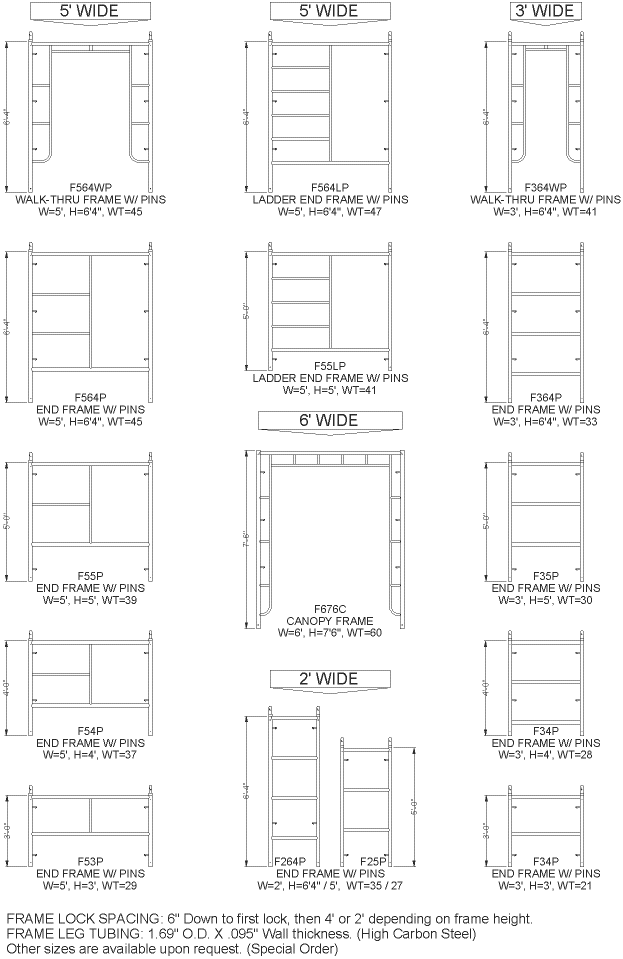

STANDARD FRAMES

Part #	Description	Measurement	Leg Load By Tier (lbs.) *			Weight
Part #	Description	Measurement	1	2	3	Weight
F25P	END FRAME W/PINS	2' W X 5' H	-	-	-	27 lb
F264P	END FRAME W/PINS	2' W X 6'-4" H	-	-	-	35 lb
F33P	END FRAME W/PINS	3' W X 3' H	-	-	-	21 lb
F34P	END FRAME W/PINS	3' W X 4' H	-	-	-	28 lb
F35P	END FRAME W/PINS	3' W X 5' H	-	-	-	30 lb
F364P	END FRAME W/PINS	3' W X 6'-4" H	-	-	-	33 lb
F364WP	WALK-THRU FRAME W/PINS	3' W X 6'-4" H	-	-	-	41 lb
F53P	END FRAME W/PINS	5' W X 3' H	5400	4700	4500	29 lb
F54P	END FRAME W/PINS	5' W X 4' H	4800	4200	4000	37 lb
F55P	END FRAME W/PINS	5' W X 5' H	4100	3400	3100	39 lb
F564P	END FRAME W/PINS	5' W X 6'-4" H	3500	2400	2200	45 lb
F564WP	WALK-THRU FRAME W/PINS	5' W X 6'-4" H	3500	2400	2200	45 lb
F55LP	LADDER END FRAME W/PINS	5'W X 5' H				41 lb
F564LP	LADDER END FRAME W/PINS	5'W X 6'-4" H				47 lb
F676C	CANOPY FRAME	6' W X 7'6" H				60 lb
* The following tables are based on 12" screw extension at the base. Test in accordance with S.S.F.I. (Scaffolding, Shoring and Forming Institute) test procedures. All frames are equipped with 2 coupling pins, bolts, & nuts.

CROSS BRACES

Part #	Measurement (Length X Height)	Measurement (Diagonal)	Weight	Rental Rental Color Coding
BC104	10' L X 4' H	10'-9.3" D	16 lb	Green
BC102	10' L X 2' H	10'-0.3" D	16 lb	Purple
BC084	8' L X 4' H	8'-11.3" D	14 lb	Black
BC082	8' L X 2' H	8'-2.7" D	14 lb	Silver
BC074	7' L X 4' H	8'-3.4" D	12 lb	Yellow
BC072	7' L X 2' H	7'-3.5" D	12 lb	Blue
BC064	6' L X 4' H	7'-2.6" D	11 lb	Orange
BC062	6' L X 2' H	6'-2.9" D	11 lb	Brown
BC054	5' L X 4' H	X'-X.X" D	9 lb	--
BC052	5' L X 2' H	X'-X.X" D	9 lb	--
BC044	4' L X 4' H	X'-X.X" D	8 lb	--
BC042	4' L X 2' H	X'-X.X" D	8 lb	--
Other sizes and double hole braces are available. H = Frame lock dimension (4' or 2').

HORIZONTAL / DIAGONAL BRACES

Part #	Description	Measurement (On Center Hook to Hook)	Weight	Rental Color Coding
BG03	Gooser 3' OC,HD	3'	10 lb	--
BG05	Gooser 5' OC,HD	5'	14.5 lb	--
BG07	Gooser 7' OC,HD7	7'	17 lb	--
BG073	Hor/Diag Gooser 7' X 3'	7'-7"	17 lb	--
BG075	Hor/Diag Gooser 7' X 5'	8'-7"	18 lb	--
BG10	Gooser 10' OC,HD	10'	20 lb	--
BG103	Hor/Diag Gooser 10' X 3'	10'-5"	20 lb	--
BG105	Hor/Diag Gooser 10' X 5'	11'-2"	21 lb	--
Note: All slides should be snug. Open & close by striking with a hammer.

GUARDRAIL & POSTS

Part #	Description	Measurement (Diagonal)	Weight	Rental Rental Color Coding
GR10	GUARD RAIL 10'	10' L	10 lb	Green
GR08	GUARD RAIL 8'	8' L	8 lb	Black
GR07	GUARD RAIL 7'	7' L	7 lb	Yellow
GR06	GUARD RAIL 6'	6' L	6 lb	Orange
GR05	GUARD RAIL 5'	5' L	5 lb	Pink
GR04	GUARD RAIL 4'	4' L	4 lb	--
GR03	GUARD RAIL 3'	3' L	3 lb	--
GR02	GUARD RAIL 2'	2' L	2 lb	--
GRPFK	GUARD RAIL POST FEMALE W/KICKER	42" H	7.5 lb	--
GRF	GUARD RAIL FRAME	--	34 lb	--
GRG	GUARD RAIL GATE FRAME	--	37 lb	--
GRGC	GUARD RAIL GATE CLAMP-ON	--	20 lb	--
Note: Guard rail posts & frames require locking pins PPS and/or PT/
